Metal Phosphate Vertical Shaft Pump And Heavy Duty Slurry Transfer Equipment Manufacturers

1 set
MOQ
Metal Phosphate Vertical Shaft Pump And Heavy Duty Slurry Transfer Equipment Manufacturers
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM
Model Number: EAAH(R)
Application: Metal And Equipment Manufacturers, Mining Industry, Wastewater Transport And Flood Control, Water Distribution, Water Treatment Solutions
Horsepower: 20-60
Power Source: Electric
Pressure: Low Pressure
Structure: Other
Outlet Size: 4/6/8/10inches
Voltage: 380V/440V
Power: 15-45kw
Motor: Hebei
Product Name: High Pressure Slurry Pump
Usage: Mining
Material: Cr27
Color: Blue Red Yellow Black
Speed: 1450r/min
Function: Slurry Transmission
Medium: Large Solid Particles
MOQ: 1 Set
Impeller: 5 Vane
Basic Infomation
Model Number: EAAH(R)
Payment & Shipping Terms
Packaging Details: As demand
Supply Ability: 100 Set/Sets per Month 1200 sets/pear
Product Description
MODEL
MAXIMUM ALLOWED POWER
MATERIAL
CLEAN WATER PERFORMANCE
CURVE NUMBER
VOLUTE
IMPELLER
CAPACITY
HEAD
SPEED
MAXIMUM
EFFICIENCY
NPSH
VANES NUMBER
IMPELLER
DIAMETER
( m3/h)
(L/S)
(m)
(r/min)
n%
(mm)
11/2/1EAAH-B
15
M
M
12.6-28.8
3.5-8
6-68
1200-3800
40
2-4
5
152
WPA151801
2/11/2EAAH-B
15
M
M
32.4-72
9-20
6-58
1200-3200
45
3.5-8
5
184
WPA215B01
2/11/2EAAH-B
15
RU
RU
25.2-54
7-15
5.5-41
1000-2600
50
2.5-5
5
178
WPA215B02
3/2EAAH-C
30
M
M
39.6-86.4
11-24
12-64
1300-2700
55
4-6
5
214
WPA32A01
3/2EAAH-C
30
RU
RU
36-75.6
10-21
13-39
1300-2100
55
2-4
5
213
WPA32A01A
4/3EAAH-C
30
M
M
86.4-198
24-55
9-52
1000--2200
71
4-6
5
245
WPA43A01
4/3 EAAH-D
60
M
M
86.4198
24-55
9-52
1000-2200
71
4-6
5
245
WPA43A01
4/3 EAAH-C
30
RU
RU
79.2-180
22-50
5-34.5
800-1800
59
3-5
5
245
WPA43A01A
4/3 EAAH-D
60
RU
RU
79.2-180
22-50
5-34.5
800-1800
59
3-5
5
245
WPA43A01A
4/3 EAAH-C
30
M
M
97.2-194.4
27--54
9-53
1000-2200
55
3
240
WPA43A02
4/3 EAAH-D
60
M
M
97.2-194.4
27--54
9-53
1000--2200
55
3
240
WPA43A02
6/4 EAAH-D
60
M
M
162-360
45-100
12-56
800-1550
65
5-8
5
365
WPA64A01
6/4 EAAH-E
120
M
M
162-360
45-100
12-56
800-1550
65
5-8
5
365
WPA64A01
6/4 EAAH-D
60
M
M
180-396
50-110
7--61
600-1600
55
3-8
4
372
WPA64A02
6/4 EAAH-E
120
M
M
180-396
50-110
7-61
600-1600
55
3-8
4
372
WPA64F02
6/4 EAAH-D
60
RU
RU
144-324
40-90
12-45
800-1350
65
3-5
5
365
WPA64A03A
6/4 EAAH-E
120
RU
RU
144-324
40-90
12-45
800-1350
65
3-5
5
365
WPA64A03A
6/4EAAH-D
60
M
M
144-324
40-90
10-52
800-1600
55
4.5-9
2
371
WPA64A04
6/4EAAH-E
120
M
M
144-324
40-90
10-52
800-1600
55
4.5-9
2
371
WPA64A04
6/4EAAH-D
60
M
M
162-360
45-100
21-64
1000-1600
55
2
371
ESY7996
6/4EAAH-E
120
M
M
162-360
45-100
21-64
1000-1600
55
2
371
ESY7996
6/4EAAH-D
60
M
M
126-288
35-80
10-55
800-1600
58
2-2.5
2
356
ESY7997
6/4EAAH-E
120
M
M
126-288
35-80
10-55
800-1600
58
2-2.5
2
356
ESY7997
8/6EAAH-E
120
M
M
360-828
100-230
10-61
500-1140
72
2-9
5
510
WPA86A01
8/6EAAH-R
300
M
M
360-828
100-230
10-61
500-1140
72
2-9
5
510
WPA86A01
8/6EAAH-E
120
RU
RU
324-720
90-200
7-49
400-1000
65
5-10
5
510
WPA86A01B
8/6EAAH-R
300
RU
RU
324--720
90--200
7-49
400-1000
65
5-10
5
510
WPA86A01B
8/6EAAH-E
120
M
M
360-828
100-230
7-70
400-1140
70
3-6
8
536
WPA86A02
8/6EAAH-R
300
M
M
360-828
100-230
7-70
400-1140
70
3-6
8
536
WPA86A02
8/6EAAH-E
120
M
M
360-828
100-230
7-52
400-1000
70
2.5-6
4
536
WPA86A02
8/6EAAH-R
300
M
M
360-828
100-230
7-52
400-1000
70
2.5-6
4
536
WPA86F03
8/6EAAH-E
120
M
M
288-648
80-180
547
400-1100
60
3-6
2
510
ESY7998
Place of Origin
Hebei, China
Power Source
Electric
MOQ
1Set
Pump selection
Referring to the performance curve of the pump, the selected capacity range should be as follows:
EAAH Pump:
For high concentration and strong corrosive slurry, the capacity range should be 40%~80%;
For medium concentration and medium corrosive slurry, the capacity range should be 40%~100%;
For low concentration and low corrosive slurry, the capacity range should be 40%~120%;
Applications

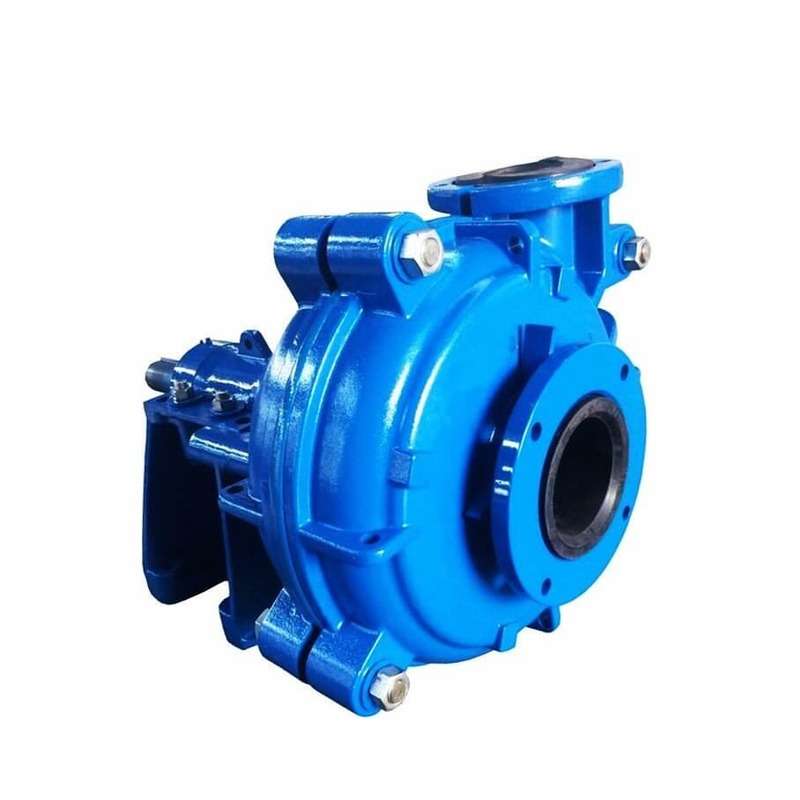

EAAH(R) pumps are cantilever, horizontal centrifugal slurry pumps. It is suitable for conveying strong abrasive and high
concentration slurries in metallurgy, mining, coal, electric power, building materials and other industrial sectors. This series
of pumps can also be used in multiple stages in series.
The frame plate of the EAAH(R) pump has a replaceable metal liner or rubber liner, and the impeller is made of wear-resistant
metal or rubber material. Rubber lined pump expand applications to chemical products handing, several different rubber materials are available to meet different application needs.
The shaft sealing adopts gland seal or centrifugal seal. The outlet can be rotated eight times at 45° intervals to install at
different positions based on vertical line.

Shaft sleeve
A large percentage of duties allow the use of the centrifugal seal which eliminates the need of sealing water.
Gland shaft seal- A packed gland type shaft seal is also available and can be fitted with a low flow or a full flow flush seal
water arrangement.
Shaft and bearing assembly- A large diameter shaft with a short overhang minimizes deflection and vibration. Heavy-duty roller bearings are housed in a removable bearing cartridge.

Pump Base
A minimum number if through bolts hold the pump casing to the frame. A means of impeller adjustment is provided in a convenient position below the bearing housing.

Outer Casing
Split outer casing halves of cast or ductile iron contain the wear liners and provide high operation pressure capabilities.

Impeller
The impeller may be either molded elastomer or hard metal. Deep side sealing vanes relieve seal pressure and minimize
recirculation.
Cast-in impeller threads are better suited for slurries.
Interchangeable hard metal and molded elastomer liners.
Mating faces in hard metal liners are tapered to allow positive alignment during assembly and allow components to be easily removed for replacement.
Hydraulic seal rings give positive sealing between mating faces.
Extra thick sections at wear point and perfect impeller structure ensures satisfactory performance with long life, and needs minimum maintenance requirements.

Seal Options
Packing seal - Most popular type of seal. Clean water at a certain pressure being injected into the packing through the lantern restrictor, preventing leakage form casing. Simple structure, easy maintenance and low cost, suitable for where expeller seal suitable.

Expeller seal - The expeller generate a reverse centrifugal force to prevent the leakage. It can be used for single-stage pump or the first pump of multiple pumps in series when the positive pressure at suction side is larger than that at discharge side by no more than 10%. No gland water is needed, the slurry will not be diluted and sealing effect is reliable, used in where dilution of slurry is no allowed.

Mechanical seal –Less leakage and long life, Suitable for applications where no extra substance is allowed to mix with the fluid being pumped, such as chemical or food industry.
