Home /Products/Hydraulic Drive Pump/Construction works   500 Meters Distance Mining Pump Dredger 8 Inch Cutter Suction Sand Pump Dredger 10 Meters Drive Hydraulic Dredger Depth Dredge

Construction works   500 Meters Distance Mining Pump Dredger 8 Inch Cutter Suction Sand Pump Dredger 10 Meters Drive Hydraulic Dredger Depth Dredge

1 Set
MOQ
Construction works   500 Meters Distance Mining Pump Dredger 8 Inch Cutter Suction Sand Pump Dredger 10 Meters Drive Hydraulic Dredger Depth Dredge
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: Bearing, Pump
Condition: New
Type: Cutter Suction Dredger
Power Type: Diesel
Dredging Depth: 20 M
Draught: 30 Inch
Dimension(L*W*H): Customized
Weight: 22000 KG
Warranty: 1 Year
Dredger Pump Size: 8 Inch - 14 Inch
Dredger Pump Flow: 450-3200m3/h
Dredger Pump Material: High Chrome Alloy
Sand Output: 90-640m3/h
Discharge Distance: Up To 2000m
Dredger Colour: Customized
Work Site: River, Lake, Sea, Etc.
Medium: Sand, Mud, Clay
Dredger Move: Spud Or Trolly
System: Hydraulic
Basic Infomation
Payment & Shipping Terms
Packaging Details: Cutter suction dredger can ship by bulk cargo or 40 container
Supply Ability: 5 Set/Sets per Month cutter sand suction dredger
Product Description
Product Overview

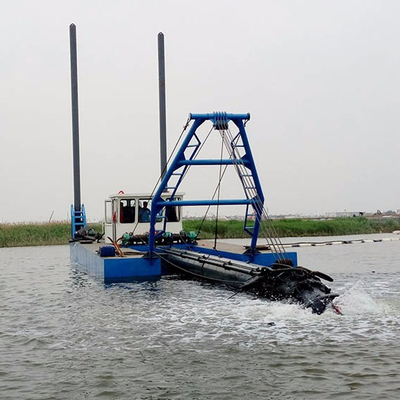

500 Meters Distance Mining Pump Dredger 8 inch Cutter Suction Sand Pump Dredger 10 Meters Dredge Depth Hydraulic Drive Dredger
Cutter Suction Hydraulic Drive Dredger makes use of a cutter head to loosen the material to be dredged and pumps the dredged material via a pipeline ashore or into barges. The powerful cutter swings around the spud-pole powered by winches while dredging, then the high-pressure sand pump sucks up the loosened mixed materials to the destination through the suction pipe. The hydraulic Cutter Suction Hydraulic Drive Dredger is suitable for heavy-duty and durable dredging operations with dismountable structures. The hydraulic Cutter Suction Hydraulic Drive Dredger is often designed easily to transport by road, rail, or by ship due to its reasonable size and weight of the various dismountable modules. The complete hydraulic Cutter Suction Sand Dredging Equipment consists of one main pontoon and two side pontoons which are mounted to the main pontoon using heavy-duty steel eyes and pins at the bottom of the hull, they are connected at deck level. The pontoons are of welded steel constructions with heavy frames, beams, and longitudinal girders. Extra reinforcements are placed where necessary to withstand all forces while dredging. It is widely used for river silt cleaning, delisting lakes and ponds, mining project, cleaning ports, and sand production.
FEATURES AT A GLANCE

1. Heavy-duty, high concentration ratio, excellent particle allowance, and long discharge distance 2. Optimal configuration of power and hydraulic unit (less operating costs) 3. Dismountable structure, easy to disassemble, and transportation. 4. Double powerful auger drive (infinitely for- and backward) 5. High working range of the outrigger arm 6. Equipped with a self-propulsion system that can be moved to a different work site or drag by tugboat 7. Cutter suction head can be changed for different situation 8. Easy access to all parts, especially the dredge pump wearing parts. 9. Fresh water cooling system. 10. Safe and easy to operate 11.Can be designed and fabricated according to your requirements
PRODUCT SPECIFICATIONS


1. Any data could be adjusted according to customers’ specific requirements.
2. Customized dredger acceptable according to requirements.
3. Engine power choose decided by dredger performance.
4. The work site situation will affect actual discharge distance, sand capacity, etc
5. Above dredger size is not changeless, it could be adjusted according to specific circumstance
PRODUCT CONFIGURATION
Exquisite hydraulic pipeline
Reasonable control table
Strong hydraulic cutter
PRODUCT APPLICATION
1. Heavy-duty operation in a tropical climate and sheltered water 2. River silt cleaning, delisting lakes and ponds, mining project, cleaning ports, and sand production 3. Sand and mud dredging, digging the channel, and reclamation by pumping filling 4. Channel digging and reclamation by pumping filling in rivers, lakes, and sea 5. Compact cutter suction dredgers can be dismantled into sections and moved by road for work in inland waterways, sludge lagoons, reservoirs, and similar isolated areas. 6. Large heavy-duty hydraulic cutter suction dredgers can be capable of dredging some types of rock which have not been pre-treated.
Successful Project
Project in Togo
Project in Malaysia
Project in Cameroon
Project in Philippines
Project in Bangladesh
Project in Thailand
Project in China
Project in Indonesia
SIMILAR PRODUCTS
Customer Reviews

Our Company

OCEAN Pump had been specialized in designing, manufacturing, and supplying sand pumps, slurry pumps, gravel pumps, and dredger equipment for more than 20 years. With an innovative hydraulic and structural design, our main sand pumping over-flow parts are made of the wear-resistant high chrome alloy, the sand pump will have a long working life, reliable operation, and small vibration, low noise, and easy maintenance. We had provided effective sand pumping equipment and dredging equipment to over 60 countries. Our products are widely used for river sand pumping, mining pumping, pond dredging, reservoir dredging, tailing transportation and land reclamation, etc. Our customers are from Southeast Asia like Malaysia and Singapore, Central Asia like Kazakhstan, South America like Brazil, Africa like Nigeria, Cameroon, and Côte d’Ivoire.
