Excavator And Injection Molding Machine Tokyo Keiki Tokimec SQP32 Low Noise Hydraulic Double Vane Pump

1 Piece
MOQ
$337.00(1 - 29 Pieces) $330.00(30 - 49 Pieces) $321.00(>=50 Pieces)
Price
Excavator And Injection Molding Machine Tokyo Keiki Tokimec SQP32 Low Noise Hydraulic Double Vane Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Showroom Location: None
Weight: 60kg
Displacement: 32.5-145ml/r, 32.5-145ml/r
Pump Type: Vane Pump
Name: Low Noise Tokyo Keiki Tokimec SQP32 Hydraulic Double Vane Pump
Standard Or Nonstandard: Standard Hydraulic
Application: Excavator And Injection Moulding Machine
After Warranty Service: Video Technical Support, Spare Parts, Online Support
Local Service Location: None
After-sales Service Provided: Online Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: standard export packing,one pump in one plastic bag,then put into the blank carton,then put on the pallet
Supply Ability: 8000 Piece/Pieces per Month
Product Description

Product Description

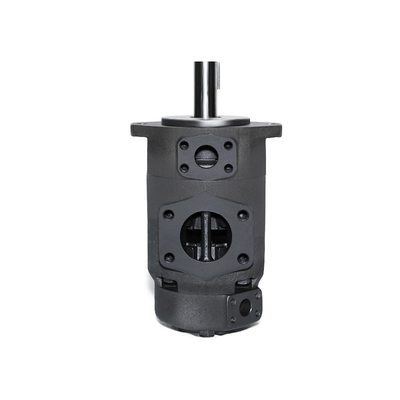

low noise tokyo keiki Tokimec SQP32 hydraulic Double Vane Pump

SQP Series vane pumps with lower noise are intra vane pumps,
featured by high pressure, lower noise, stable operation, long life-span,
and so on, and are widely used in cutting, plastic, leather, pressure, engineering
machinery fields and the like.

Specifications:

Installation and Use
1.In installation, the tolerance of concentricity between shaft of pump and motor must be less than
0.10mm(TIR) and the maximum permissible angle error is less than 0.2 degrees by using the
flexible coupling; The pump shaft shall not bear the radial and axial load; The carrier must be firm
with good rigidity and can fully absorb vibrations.
2. Fix pipes, especially inlet pipes in accordance with the size of port and assemble safety relief valves
in the system( the inlet flow rate is between 0.5 and 1.5 m/s ). The regulating pressure of the safety
valve shall not be greater than the maximum pressure of the pump; Inlet pipes must be strictly
sealed with no leakage; Inlet pipes must be strictly sealed with no leakage; The fuel tank shall be
equipped with a diaphragm to separate the bubbles and dirt from the oil; The oil return nozzle
should be lower the fluid surface, the minimum depth of 50 mm, even in a low, too, when the
permissible level of to avoid the formation of bubbles .
3.Set the suction pressure at pump inlet port : oil hydraulic oil is + 35 ~ -16.7 KPa. The hydraulic oil
of water - glycol and phosphate ester was + 35 ~ -10.1 KPa.
4.In case where the pump is installed on the tank or at the position higher than the tank top cover, the
height of the suction port of the pump should be less than 500mm.
5.Oil should be kept clean, pipes and tanks must be thoroughly cleaned; Precise filters should be
assembled with the advised precision of 25μm in the system, the cleanness level of oil should be
within NSA12. Fix the sufficient-volume filter (the rated flow rate should be greater than twice the
pump flow )at the inlet of the pump 50mm above the bottom of the tank, with the suggested
precision of 100μm(150 mesh).
6.It is recommended to use antiwear industrial hydraulic oils or automotive crankcase oils having letter
designations SC,SD,SE or SF with viscosity grades of 32 to 68 cSt at 40 ℃ ; Preferred viscosity at
rated speed and pressures:
Min. 13cSt Max. 54cSt
Min. 49℃ Max. 65℃
7.Check the inlet, outlet and direction of rotation before starting the pump. Turn the shaft of pump
evenly and nimbly by hand after fixing the pump. It is best to fill the pump with oil for the first time.
At an initial operation or at an operation after a long rest, the pump may have difficulty in sucking
up fluid; In such cases, an air bleed valve should be installed beforehand on the discharge side or
discharge air by slightly slackening the connection on the discharge side. At starting, operate the
pump intermittently as far as possible with no load.
8.Do not start the pump when the outlet pressure is lower than the inlet pressure. This will cause work
noise and blade instability.
9. At startup, If the oil viscosity is higher than the suitable viscosity (54cSt) , the pressure should be
limited to 50%or less of their respective rated values until the system has warmed up.
Packaging & Shipping

Company Information

Application

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Is the products standard ?

A: yes, our products are international standard and our products can be interchangeable with original Parker Denison ,Eaton Vickers,Yuken,Tokimec !

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock,or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us

Q: How long of the guarantee ?

A: All of our products have long guarantee time 12 months and we supply spare parts for aftersale service !
